CHP-EX Explosion-proof electronic small scale Explosion Proof Scale Explosion-proof electronic platform scale
Explosion-proof electronic small scale
Explosion-proof grade: Ex ia II BT5
Explosion-proof category: intrinsically safe type (optional: flameproof type)
Technical parameters of explosion-proof electronic small scale:
Accuracy class: III
Display: LCD with backlight
AD conversion: Σ- △, 24bit
Resolution: Display 50,000 Internal Code: 2,000,000
Minimum resolution: 0.3μV / d
Excitation voltage: 5VDC
Input signal range: -30mv ~ 30mv
Working power: AC / DC intrinsically safe power supply or intrinsically safe battery pack 7.2V4.8Ah
Working environment temperature: -10 ~ 40 ℃
Humidity: ≤85% R.H
Structural features of explosion-proof electronic small scale
U-shaped steel group welding structure, high strength design
Material: carbon steel or stainless steel, pattern steel or flat panel
Carbon steel weighing platform: paint or galvanized
Stainless steel surface: polished, brushed
Four high-precision shear beam sensors
Explosion-proof electronic small floor scale product features:
Basic functions: weighing, counting, zeroing, tare, stepwise, printing;
Extended functions: animal weighing, holding, sorting, check weighing, upper and lower limit alarms, etc .;
Optional function: RS232 / RS485, Modbus, analog output (4 ~ 20mA, 0 ~ 5V)
Explosion-proof electronic small scale product specifications:
| Product name |
explosion-proof electronic small scale |
| Product number |
CHP-EX |
| Weighing platform height |
12cm |
| Table size |
0.8×0.8M,1.0×1.0M,1.0×1.2M,1.2×1.2M,1.2×1.5M
1.5×1.5M,1.5×2.0M,2.0×2.0M,2.0×3.0M,2.5×3.0M
Note: Any non-standard size can be customized according to your requirements
|
| Maximum |
600kg |
1000kg |
2,000kg |
3,000kg |
5000kg |
| Accuracy |
0.2kg |
0.5kg |
0.5kg |
0.5kg |
1kg
|
Product Tags:
|
|

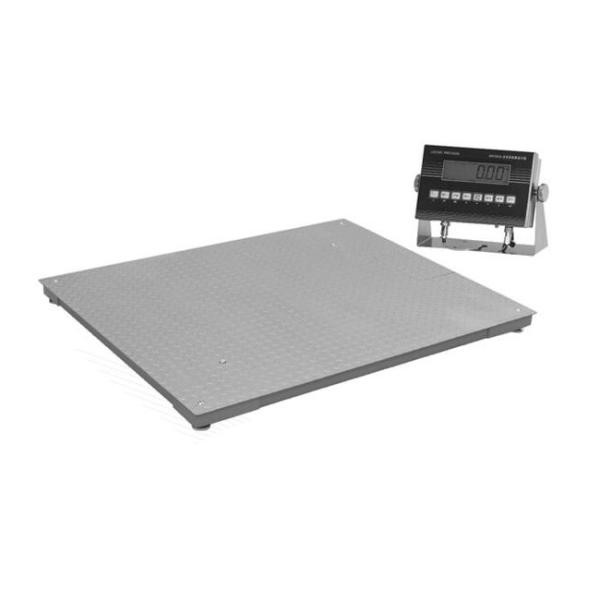

Small Explosion Proof 1kg Electronic Floor Scale Images
|
