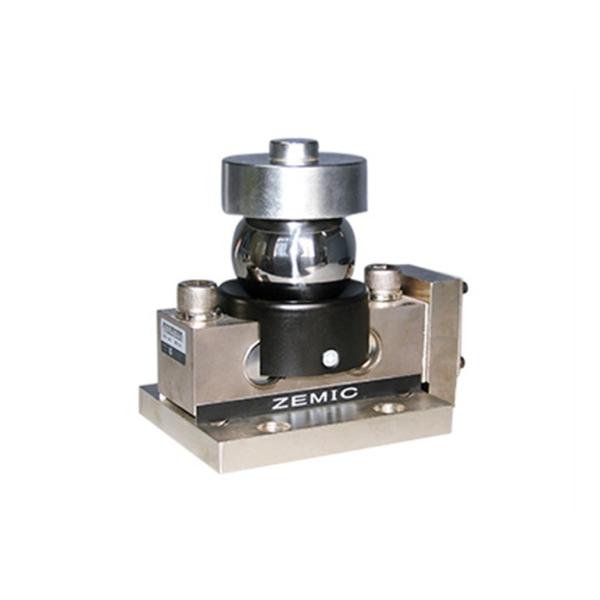

Oil Proof Railway Scales 50t Double Ended Load Cell DBM14K

Name: Oil Proof Railway Scales 50t Double Ended Load Cell DBM14K
Brand: zemic
Price: 800 USD

Brand Name : zemic

Model Number : DBM14K

Certification : CE

Place of Origin : CHINA

MOQ : 100

Price : ￥800-10000/pcs

Payment Terms : T/T

Supply Ability : 99999+pc+1m

Delivery Time : 2-4weeks

Ultimate overload : 300(%FS)

Safe overload : 150 (%FS)

Temperature, compensated : -10~+40(°C)

Temperature,allowed : -35~+65 (°C)

Excitation, Recommended : 5~12(DC)

Excitation,Max : 18(DC)

Contact Now

truck scale loadcell/ ntep double shearbeam ZEMIC HM9A loadcell

Specifications

High accuracy.
Alloy steel construction.
Easy installation, reliable performance.
Capacity 10t~50ton

Truck scales loadcell Zemic HM9A

1. HM9A load cells are available in the capacities 10t to 50t.
2. Alloy steel construction, nickel plated,hermetically welded,
oil-proof, waterproof and anti-corrosive gas and medium making
3. It suitable for all kinds of environments.
4. Dual shear beam, suitable for electronic truck scales,
railway scales and other electronic weighing devices.

Specifications

Capacity	t	10/15/20/25/30/40/40SE/50
Accuracy		C1	C2	C3	A5M	B10M
Max number of verification intervals	n max	1000	2000	3000	5000	10000
Mini number of verification intervals	v min	Emax/3000	Emax/5000	Emax /10000	Emax /15000	Emax /10000
Combined error	(%FS)	≤±0.050	≤±0.030	≤±0.020	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.038	≤±0.024	≤±0.016	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10°C)	≤±0.028	≤±0.017	≤±0.011	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10°C)	≤±0.047	≤±0.023	≤±0.015	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	2.0±0.002
Input resistance	(Ω)	700±3.5
Output resistance	(Ω)	703±3.5
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.5
Temperature, compensated	(°C)	-10~+40
Temperature,allowed	(°C)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
